Product

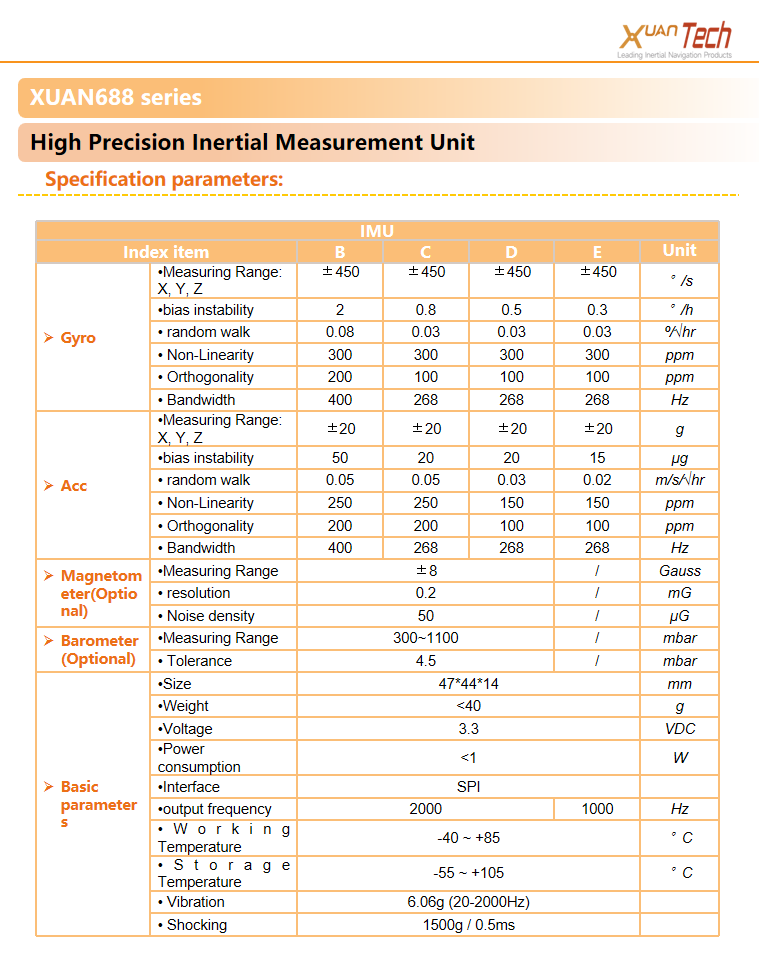

The XUAN688 series lMU are equipped with built -in three - axis gyroscopesand three - axis accelerometers, which are used to measure the three - axisangular rates and three - axis accelerations of the carrier. The data from thegyroscopes and accelerometers, which have undergone error compensation(including temperature compensation, installation misalignment anglecompensation, nonlinear compensation, etc.), are output through a serial portaccording to the agreed communication protocol. They can be used for precisenavigation, control, and dynamic measurement of the carrier. This productuses high -precision MEMS inertial devices, featuring small size, strongoverload resistance, high reliability, and high hardness, and it is capable ofaccurately measuring the angular rate and acceleration information of amoving carrier even in harsh environments.

The XUAN688 series includes four models: XUAN688B, XUAN688C,XUAN688Dand XUAN688E. The appearance and interface performance of the four modelsare consistent. Except for XUAN688E, all of them are equipped with built - inthree -axis magnetometers and digital barometers.
